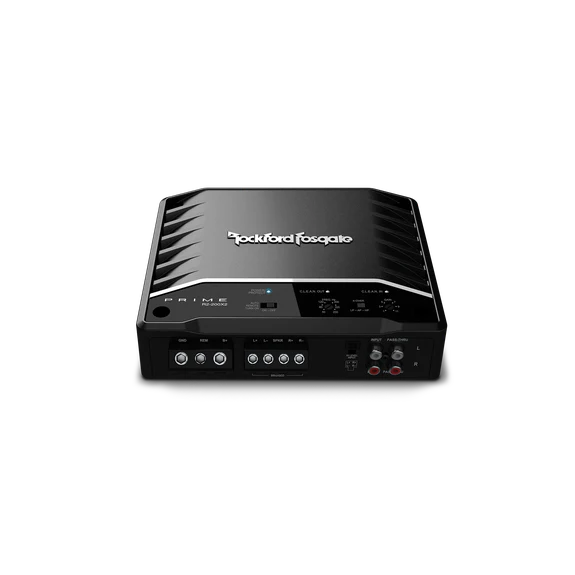

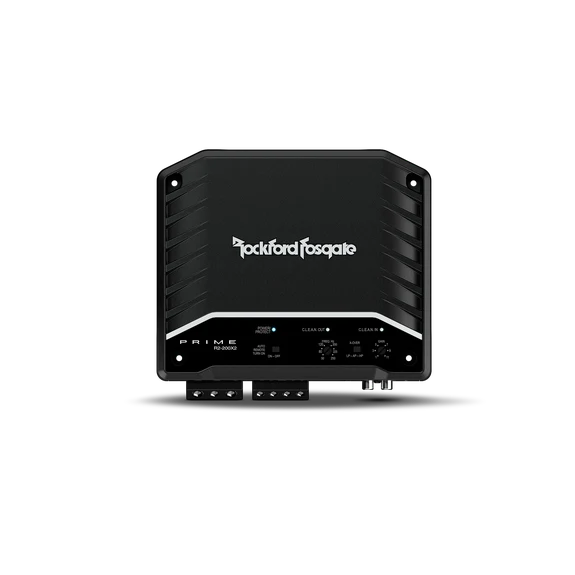

Rockford Fosgate Prime R2-200X2 2-Channel Amplifier
Rockford Fosgate Prime R2-200X2 2-Channel Amplifier
Rockford Fosgate Prime R2-200X2 2-Channel Amplifier
Rockford Fosgate Prime R2-200X2 2-Channel Amplifier
1/4

Rockford Fosgate Prime R2-200X2 2-Channel Amplifier

$219.99
$219.99 $229.99
Save $10.00 Sold out
Shipping calculated at checkout.

The R2 models are developed for car audio fanatics that want a reliable amplifier – with all the power and performance you’ve come to expect from Rockford Fosgate – at an economical price. Rockford Fosgate amplifiers are renowned world-wide for being “under rated,” easily surpassing all specifications, and most importantly, generating more power than their ratings. These 3rd generation of Prime Series amplifiers are refined with the latest Rockford Fosgate technology for easy setup and configuration, making them perfect for use with factory audio or custom aftermarket systems.



FEATURES AT A GLANCE

  • Balanced Differential Inputs with RCA Pass Through Outputs
  • Variable Input Gain adjustment level
  • Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
  • High Level Input Capable
  • Features C.L.E.A.N. Set-up
  • Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
  • Full Range Class-D
  • CEA-2006 Compliant & CE Compliant
  • 1 Year Warranty
  • Top Mounted Control Panel
  • Short Circuit & Over Current Protection
  • Cast aluminum heat sink
Cta-2006 Compliant

Number of Channels
2
Total Power
(Sum of Rated Power)
200 Watts
Rated Power
(RMS Continuous Power)
50 Watts x 2 @ 4Ω
100 Watts x 2 @ 2Ω
200 Watts x 1 @ 4Ω Bridged/Mono
Dynamic Power
(PVC/PowerCube®)
60 Watts x 2 @ 4Ω
107 Watts x 2 @ 2Ω
215 Watts x 1 @ 4Ω Bridged/Mono
Bridgeable
Yes
Frequency Response
20 Hz - 20 kHz
Input Sensitivity
Low-Level: 150 mV - 4 V
High-Level: 450 mV - 12 V
Circuit Topology Class
Class-D
Efficiency (average)

Total Harmonic Distortion (THD+Noise)
4Ω: <1.0%
2Ω: <1.0%

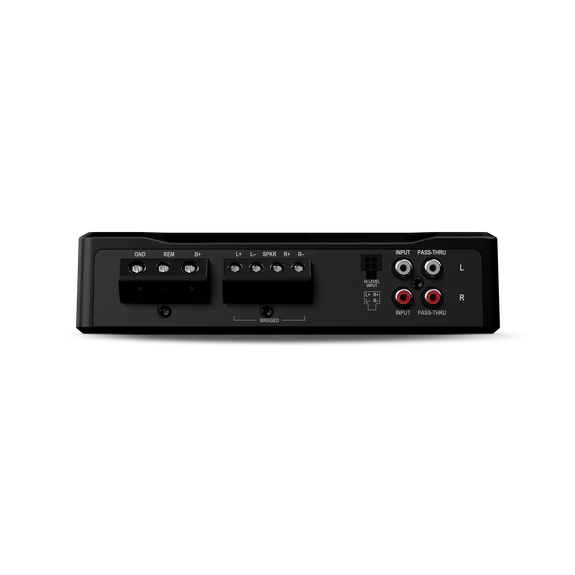

Signal Input
Low-Level: 2 RCA
High-Level: 4-Pin Molex
Signal Output
Low-Level: 2 RCA
(Pass-Thru active with RCA or Hi-Level input)
Tone Controls
No
Crossover Controls
High-Pass:
50 Hz - 250 Hz @ 12dB/Octave Butterworth
Low-Pass:
50 Hz - 250 Hz @ 12dB/Octave Butterworth
All-Pass: Yes
Remote Controls
No
Visual Indicators
POWER (Blue) / PROTECT (Red)
C.L.E.A.N. IN (Red)
C.L.E.A.N. OUT (Blue/Red)
Power Wire Gauge
4 AWG
Power Input Connector
Compression Terminal Block
Speaker Wire Gauge
8 AWG
Speaker Output Connector
Compression Terminal Block
Cooling
Convection
Heatsink

Operating Voltage
9 - 16 VDC
Recommended Fuse
(not included)
30 A
Average Current Draw (13.8V Music)

Max. Current Draw (13.8V Sinewave)
18 A
Suggested Alternator

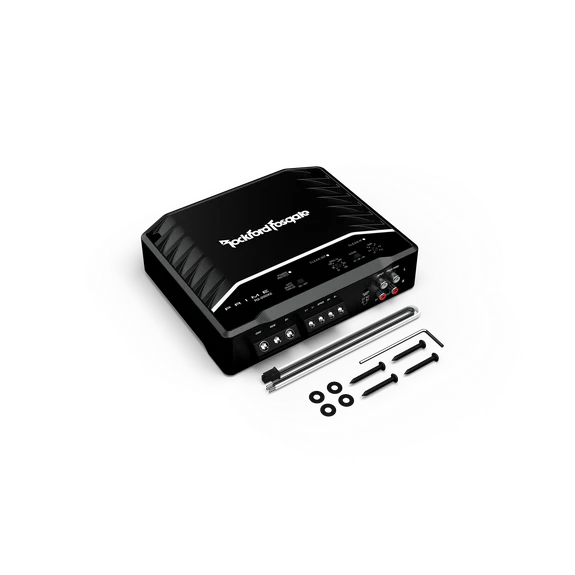

Included In The Box

Dimensions (H x W x D)
1.9" x 6.8" x 8.1"
(4.9 cm x 17.3 cm x 20.5 cm)
Shipping Weight
