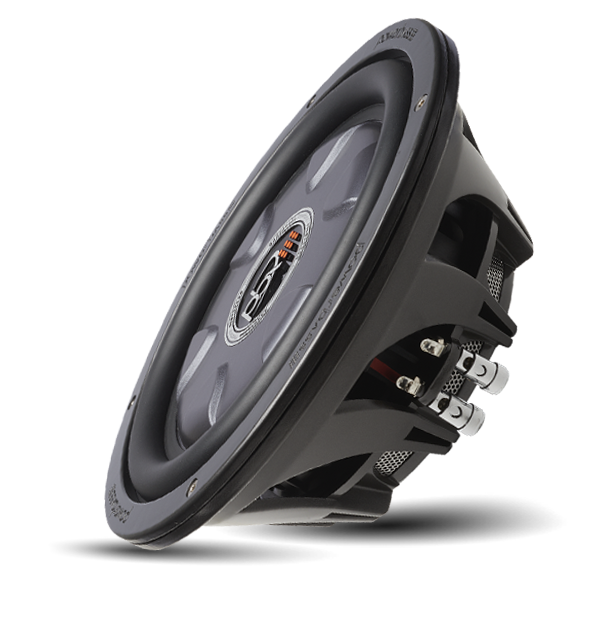

Powerbass XL-1040TD 10" DVC Shallow Mount Subwoofer

Powerbass XL-1040TD 10" DVC Shallow Mount Subwoofer

$122.99
$122.99 $129.99
Save $7.00 Sold out
Shipping calculated at checkout.

XL-1040T SHALLOW MOUNT 10" SUB THAT CAN HANDLE THE POWER

Those seeking a shallow woofer that can handle more power in a tight space will find that our new XL-Shallow subwoofers are just the ticket.

The proprietary one piece cone gives accurate and efficient bass to a system without taking a whole lot of space. Designed to work best in a small sealed enclosure that will fit in most spaces that a standard woofer won't opens up new possibilities for the most discerning music fan.

Using the same turbine style Poly/Glass Fiber basket as our standard XL subwoofers this shallower version offers all the features and reliability from the Xtreme family. Boasting a flat injection molded cone and inverted ferrite magnet these drivers come in nearly 2-inches shorter than their standard XL counterparts.

  • New PBX logo dust cap
  • 10" Shallow Mount Dual 4-Ohm Subwoofer
  • 350 Watts RMS/700 Watts Max
  • Proprietary Single Piece Injection Molded Flat Cone Design
  • High Roll Santoprene® Surround
  • 2.0" Vented KSV Voice Coil Former
  • Perimeter Aero-Vent Voice Coil Cooling Vents
  • Proprietary Non Resonance Polycarbonate/Glass Fiber Basket
  • Chrome Push Terminals
  • Optimally Designed for Small Sealed Enclosures

Specifications

  • Subwoofer Frequency Range: 35Hz - 500Hz
  • Inputs: Dual Coil
  • Fs: 35hz
  • Cutout Diameter: 9 5/16 in
  • BL: 14.693
  • Nominal Impedance: single 4-ohm
  • Voice Coil Size: 2 in
  • Material: Injection molded Polypropylene
  • Magnet Size: 116 oz
  • Sensitivity (1W / 1M): 82.9 dB
  • Mounting Depth: 3.4"
  • Xmax: 7.5 mm
  • Spl: 82.9db
  • No: 0.123%
  • Qts: 0.487
  • Qes: 0.577
  • Qms: 3.655
  • Mms: 164.056 g
  • Cms: 127.039 uM/N
  • Vas: 21.02 Ltr
  • SD: 346.360 sqCM
  • Test Impedance: 3.2-ohm
  • VC Impedance: 4-ohm
  • Size: 10" shallow
  • Sensitivity: 82.9 dB
  • Frequency Response: 35Hz - 500Hz
  • Voice Coil Size: 2"
  • Power Handling (RMS/Peak): 350 / 700 watts
