DS18 EXL-P1200X4 EXL Power 4-Channel Class A/B Amplifier 200 x 4 @ 4-Ohm Watts Rms Made In Korea

Regular price $369.99
Sale price $369.99 Regular price $399.99
Save $30.00 Sold out
Shipping calculated at checkout.

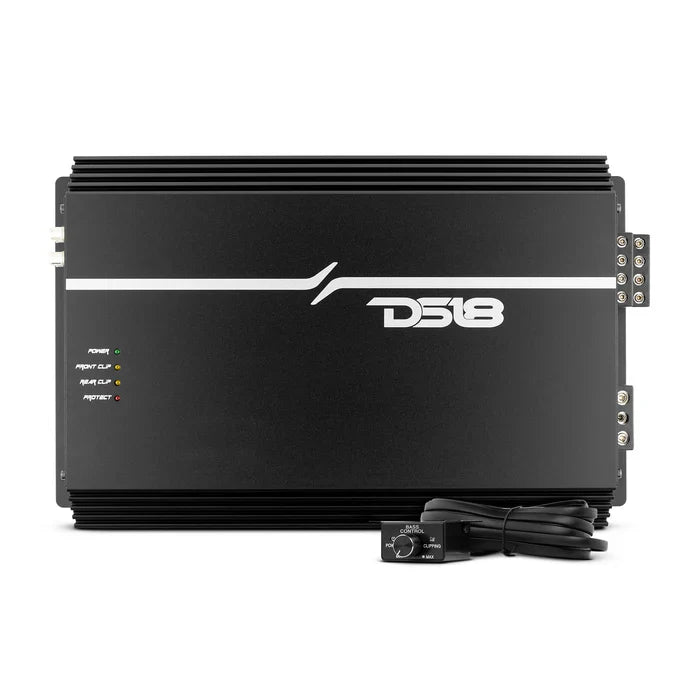

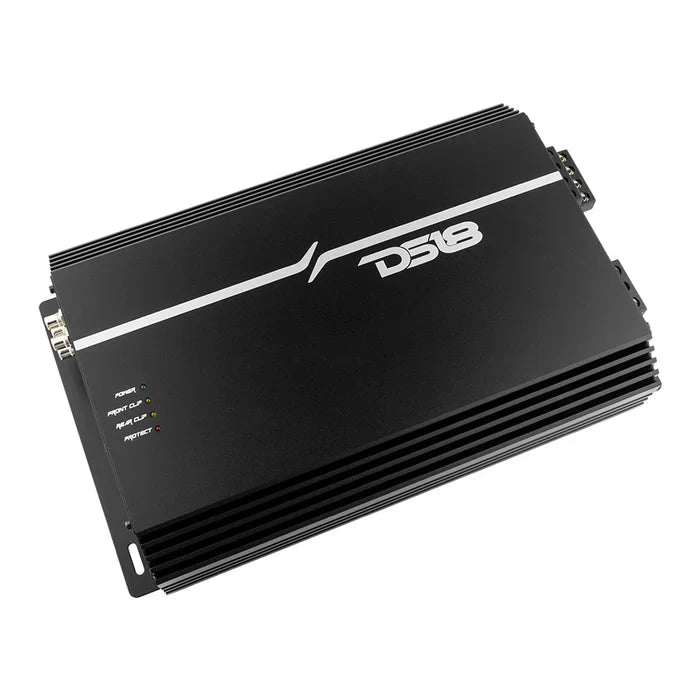

DS18 EXL-P1200X4


4 Channels Class A/B Car Amplifier – RMS Power @ 4 Ohm 200W x 4CH – Made in Korea

From Korea with Love comes DS18’s EXL-P1200X4, a true marvel of car audio engineering.

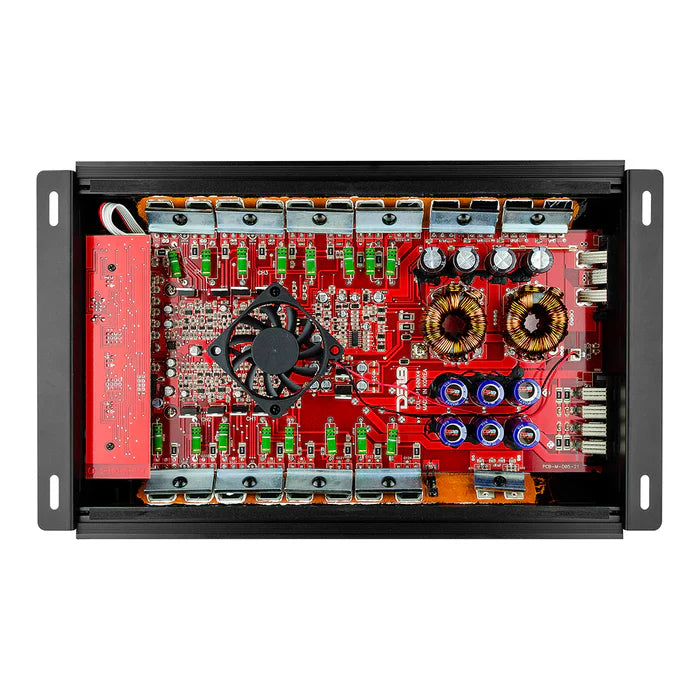

What truly sets this amplifier apart is its optimized Korean circuitry, thoroughly crafted with premium components. The result? Mind-blowing power levels that will leave your subwoofers trembling in awe. The sleek design is not just about aesthetics; it houses a strong heatsink casing and thermal protection circuitry. With this advanced technology at its core, the EXL-P1200X4 maintains an optimal temperature, ensuring longevity and efficiency that goes beyond the ordinary.

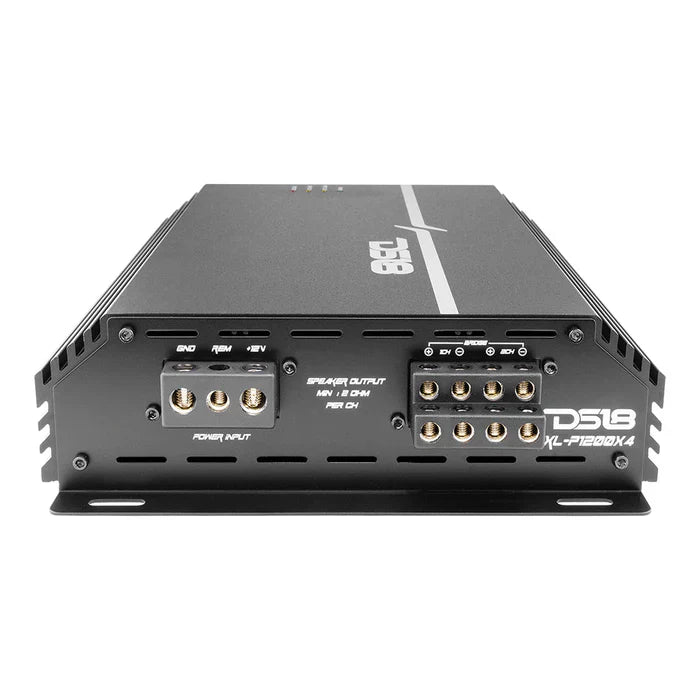

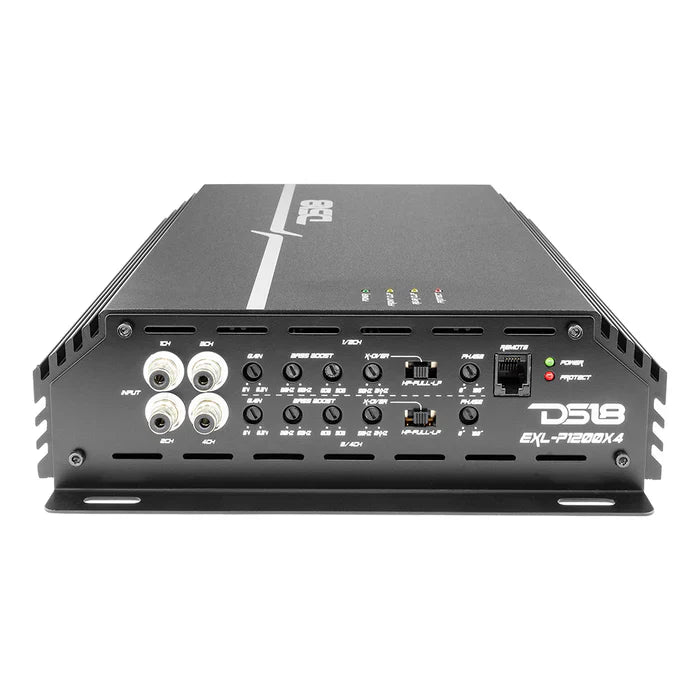

But it doesn't stop there. The EXL-P1200X4 is your gateway to audio perfection. Equipped with a bass knob and precise filters, you have effortless control over every frequency. Fine-tune the signal to suit your preferences, and with the power and clipping indicator, monitor your system's performance as you cruise along the open road. DS18’s EXL-P1200X4 dares you to create the soundstage of your dreams while immersing yourself in the journey. With large power and ground 4 AWG inputs, along with 8 AWG speaker input terminals, this amplifier is built to withstand the rigors of the road. To ensure optimal operation, we recommend a 160A inline fuse, providing you with peace of mind and uninterrupted performance.
Prepare for pure power output as the DS18 EXL-P1200X4 delivers 600W x 2CH RMS at 4-Ohms bridged, 300W x 4CH RMS at 2-Ohms, 200W x 4CH RMS at 4-Ohms. The raw power emanating from the EXL-P1200X4 will push your speakers pass their limits.

SPECS

SKU
EXL-P1200X4
RMS Power @ 4 Ohm
200W x 4CH
RMS Power @ 2 Ohm
300W x 4CH
RMS Power @ 4 Ohm Bridge
600W x 2CH
Frequency Response
20Hz-20KHz
Signal/Noise Ratio
>98dB
Efficiency @4 Ohm
>63%
Damping Factor
160
THD %
<0.10%
Low Level Input Range
200MV-6V


SPECS

Selectable X-Over
Yes, HPF/FULL/LPF
X-Over Filter Range
50Hz-2KHz
Bass Boost Range
0-+9dB
Bass Boost Frequency
30Hz-60Hz
Infrasonic Filter
No
Phase Selector
0-180
Class
AB (Analog)
Amplifier Type
Stereo Full - Range
ChannelS
4 CH
Minimum Impedance
2 Ohm/CH (4 Ohm Bridge)


SPECS

Led Indicator
PWR / CLIP / PROTECT
Power Input Size
4 AWG
Fuse Rating
160 A
Remote Level Control
Yes - Dash Mount
Cooling Fan
Yes
Thermal Protection
Yes > 97°C / 206°F
Over-Load Protection
Yes
Dc Output Protection
Yes
Body Color / Finish
Black Aluminum
Dimensions L x W x H (Inches)
14.25 x 8.77 x 2.67"
