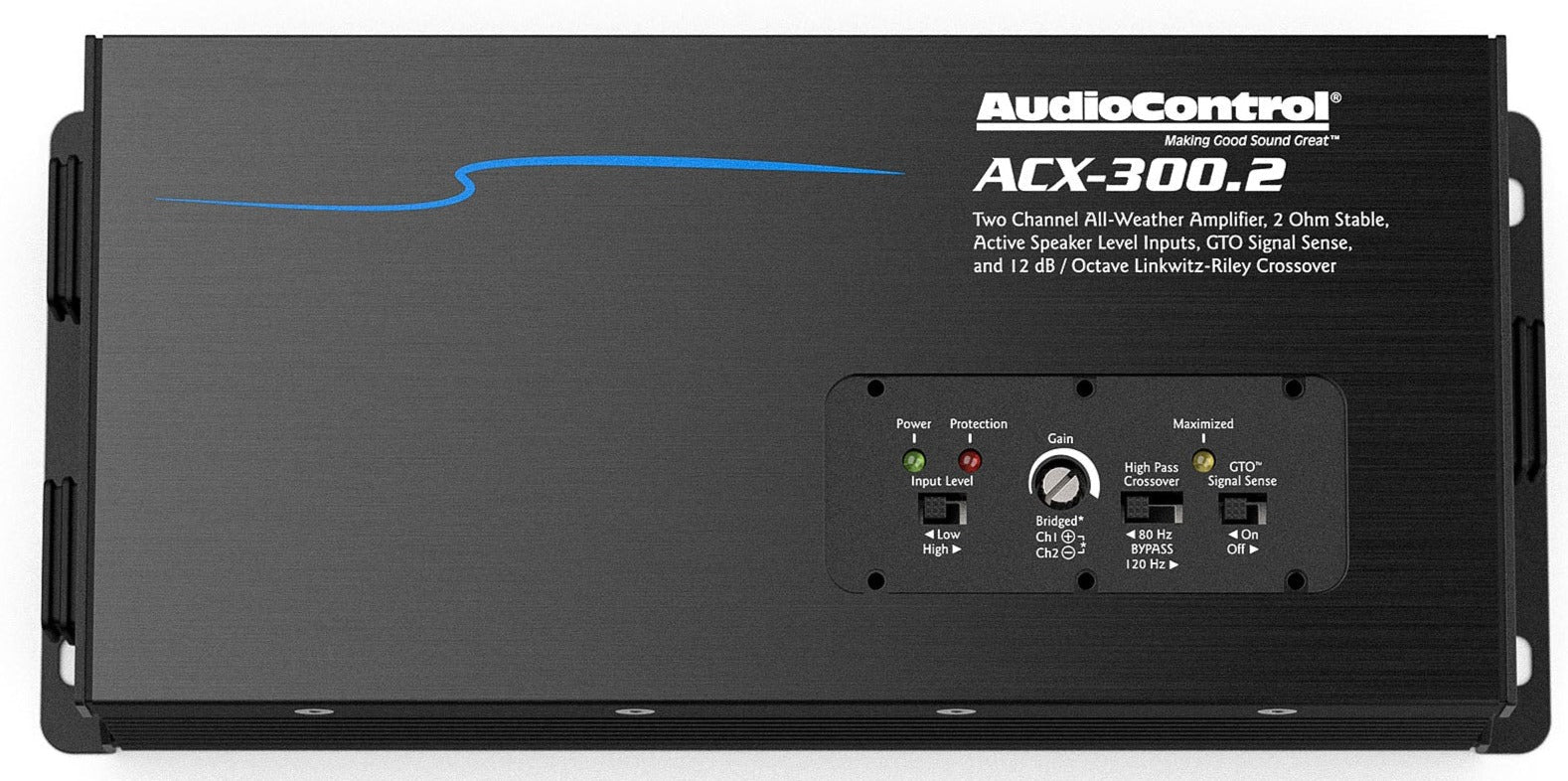

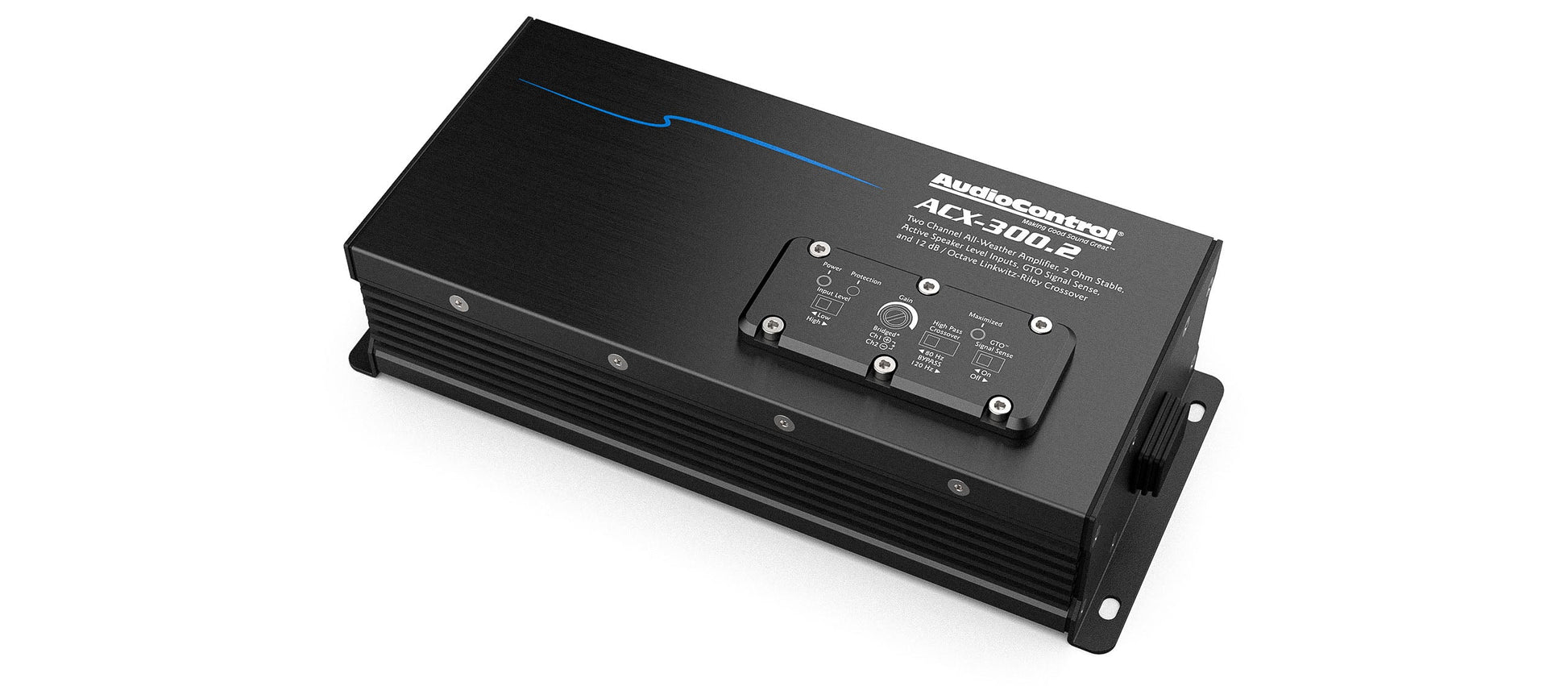

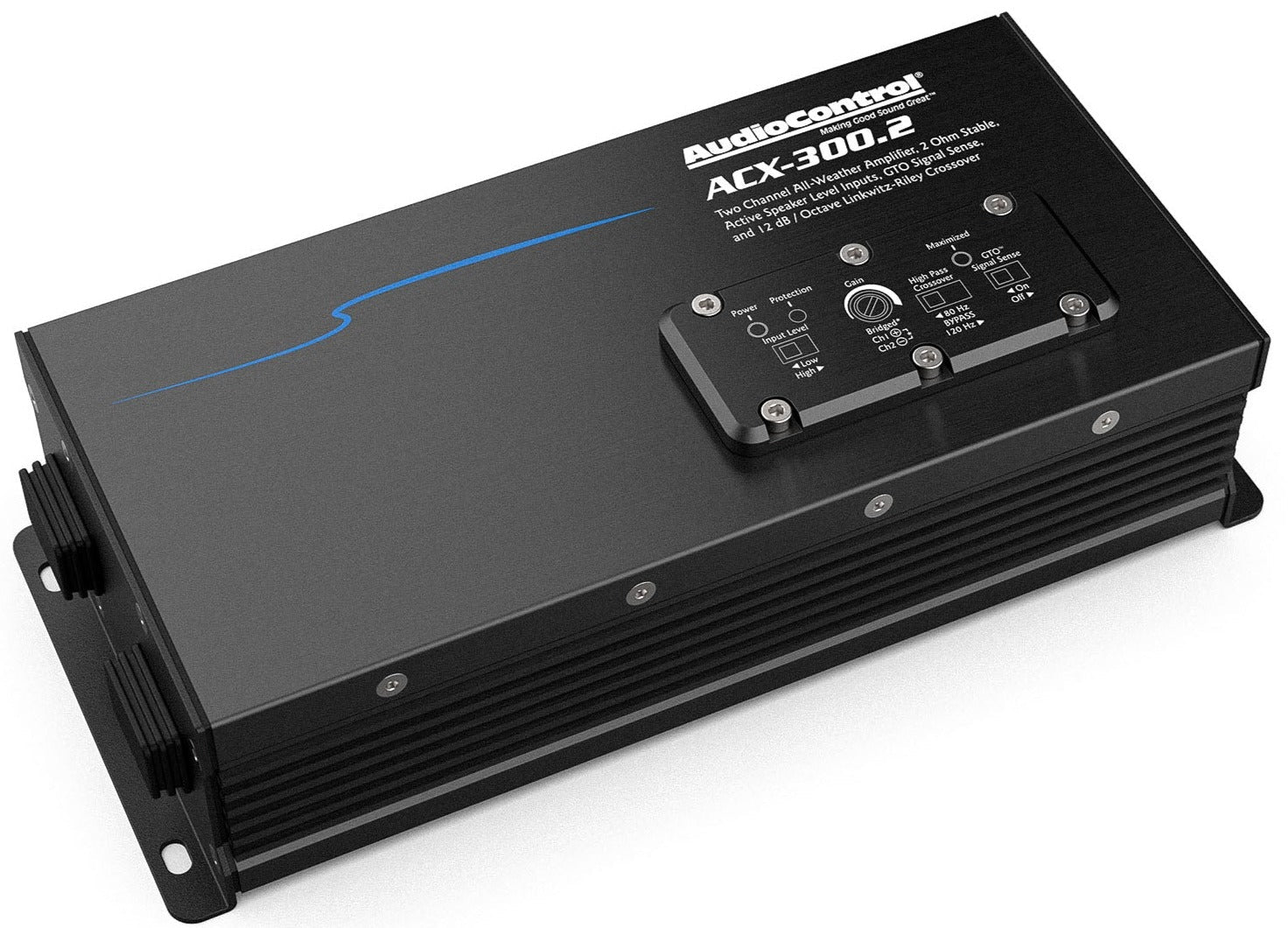

AudioControl ACX-300.2 2-Channel Amplifier
AudioControl ACX-300.2 2-Channel Amplifier
AudioControl ACX-300.2 2-Channel Amplifier
AudioControl ACX-300.2 2-Channel Amplifier
1/4

AudioControl ACX-300.2 2-Channel Amplifier

$349.99
$349.99 $379.99
Save $30.00 Sold out
Shipping calculated at checkout.

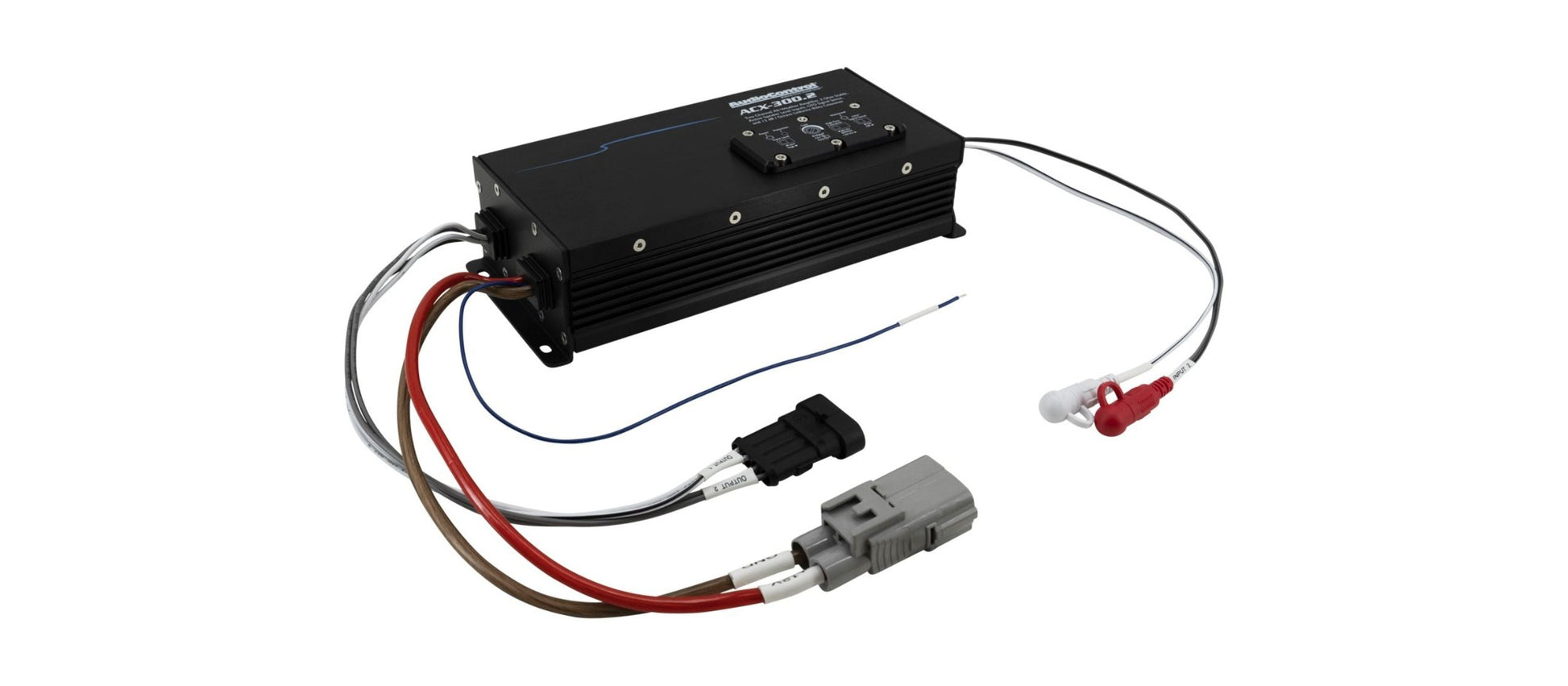

AudioControl’s ACX-300.2 all-weather amplifier delivers honest power levels to the sound system in your boat, utv, motorcycle, and more. The ACX-300.2 will ensure your open-air speakers and subwoofers deliver plenty of punch and clarity, all day long. Installer-friendly, heavy gauge quick-connect wiring makes installation quick and painless, making the ACX-300.2 all-weather amplifier the perfect solution for your next adventure.

features

  • 2 x 75 watts @ 4 ohms
  • 2 x 150 watts @ 2 ohms
  • 1 x 300 watts @ 4 ohms bridged
  • IPX6 Rated
  • GTOTM Signal Sense
  • High and low input modes
  • Linkwitz-Riley Crossover
  • Bulletproof 5 year warranty (when installed by an authorized AudioControl dealer)

specifications

inputs

  • Preamp/Speaker Level Inputs: 2
  • Input Voltage Low: 500 mV – 6 Vrms
  • Input Voltage Range High: 1 Vrms – 12 Vrms

outputs

  • Rated Continuous (RMS) Power at 14.4V:
    • 4 Ω – 75 W x 2
    • 2 Ω – 150 W x 2
    • Bridged 4 Ω – 300 W x 1

performance

  • Frequency Response: 26 Hz – 22 kHz
  • Signal to Noise: 102 dBA, Ref 50 W @ 4 Ohm
  • THD+N: < 0.05%
  • Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
  • IP Rating: IPX6

general

  • Recommended Fuse Rating: 30A

weights & dimensions

  • Dimensions: 8.89″W x 3.86″D x 2.36″H
  • Weight: 3.15 lbs. (1.43 kg)

in the box: ACX-300.2, Manual, Warranty
